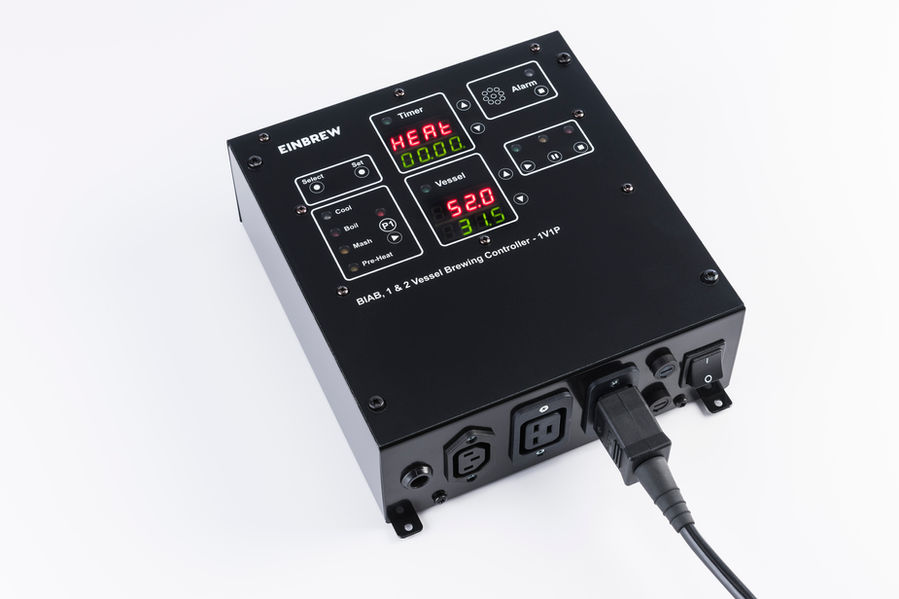

EINBREW 1V1P

ELECTRIC BREWERY CONTROLLER

UK Designed, UK Manufactured, UK Supported.

Running your brew in a bag, 1 or 2 vessel HERMS or RIMS electric brewery is easy with EINBREW 1V1P. Full brewing cycle management and temperature control.

This controller is also used as a replacement for a failed controller on a Speidel Braumeister BM20 or BM50.

The 1V1P lets you program up to 9 mash step temperatures and times as well as up to 9 hop insertion times - it precisely controls the complete brewing process for you.

Bespoke electronic controller with process management to help get your brew right every time.

In the box you get, 1x controller, 1x 2m power lead, 1x PT100 temperature sensor with 3m lead, 1x C20 element connector, 1x C14 pump connector, installation instructions. Professional installation advised.

The 1V1P supports 16A (internal Solid State Relay) with one heating element of up to 3500W ~15.5A (@ 230V). So total current, pumps, element and controller must not exceed 16A. There is an internal relay to control the element.

Each includes connectors for 1 x pump (IEC C14), as well as 1 x temperature probe (XS12 connector) with 3m lead and power input lead (IEC C19). CE and LVD compliant. Works on 230V/ 50Hz & 60Hz.

Controller is power coated steel, 215x230x80mm, with integral wall mounting brackets.

Supports heating element

up to 16A/230V

Automatic Mash and Boil Management

Plug and Play with

IEC Standard Connectors

Robust, Reliable, Safe

CE/LVD Certified Control

CUSTOM CONTROL IN YOUR HANDS

Unlike competitor systems and off-the-shelf parts, EINBREW EBC is a dedicated brewing controller that is specially designed for 1 & 2 vessel and BIAB brewing. Works with 1 vessel, 2 vessel, RIMS and HERMS breweries.

It helps you manage the brewing process as you go along, with multiple mash stages, grain rests and hop insertion alarms as well as managing mash in and boil.

HOW IT WORKS

EINBREW EBC offers the best all-in-one control solution for single vessel brewing; everything you need to make the greatest beer around.

Custom controller lets you setup your brewing recipe before you start, with support for up to 9 mash stages and 9 hop insertions.
Compatible with wall or stand mounting so it can be placed at a convenient working height.
Automatically controls to your set temperatures, and rests for the times you define. Custom control algorithm helps to prevent overshoot and oscillation.
Temperatures and stages times can be adjusted on-the-fly when brewing, if you notice that things need to change. Also manages cooling stage.
Includes a temperature measurement probe for your vessel.

EINBREW FEATURES

CONTROLLER

Looks after your wort and keeps to your recipe. Alarms for mash-in, mash-out, boiling, hop insertions and cooling.

ENERGY EFFICIENT

Microcontroller temperature control for heating and cooling ensures maximum brewing efficiency.

CLEANING CYCLE

Easily heat water in each vessel for cleaning purposes, without having to go through a whole brewing cycle!

WORT CREATION

Up to 9 mashing stages allows you to customise your brewing process with multiple grain rests at different temperatures.

SUPERIOR DESIGN

Not only looks great, but designed so it can be easily installed with standard IEC power connectors. Splash proof fascia.

EASY DISPENSING

Pump control allows you to pump between vessels, cool or pump-out to fermenter.

MINIMAL & SMART DESIGN

No unnecessary clutter with minimalist interface and controls. Reduced space overhead helps you manage your brewery.

View status at a glance. Simple recipe setup with additional options menu.

Sleek steel black powder-coated surface with splash proof fascia.

Flexible to work with direct or indirect heating brewery setups and a variety of different elements and pump types.
